Loch Lomond Usable Base Map

Rerouting iteration 8th

Rerouting iteration 7th

Rerouting iteration 6th

Like 4,5,7 hole, I tried to suggest difficult problems to golfer by this sites’ original attribute.

A weak point.

On the 5hole(par 4), I wonder the width of fairway is reasonable. Because in the same area, I made the hole(par 5) in fifth routing.
On the 4hole(par 5), the fairway is in wetland and a little narrow.

Rerouting iteration 5th

In the fifth routing, I tried to move club house to mid-site and use the attractive topography.(eg, 4,5,6,8,9 hole)





A weak point.

On the 6hole(par 5), this hole exactly has attractive points(topography, stream, and existing trees). But I wonder the width of fairway is reasonable.
4hole’s length is 624 yard. I wonder the length is reasonable.

Rerouting iteration 4th

In forth routing, I tried to rearrange the club house on the south area , considering broad road. By moving the club house, on the mid-site, there is more broad usable space.

A weak point.

I wonder if the height between fairway and green on 3hole is reasonable.

Rerouting iteration 3rd

A weak point.

On 6 hole, the green is wetland and the altitude between green and fairway(approach shot) is about 15meter.

Rerouting iteration 2nd

In second routing, I tried to make new routing which let golfers feel this site’s attractive topography and landscape in the beginning of the game.


A weak point.

In 8hole, tee is low point and fairway is a little narrow.
And even, 5hole’s tee is also low point

Rerouting iteration 1st

In my first routing, There were some problems in 2 hole crossing the road and 7,8 hole’s awkward arrangement. Therefore, I can rectify the bad routing by professor’ advice. And even, In 8hole par3, the green is rearranged near the stream, because the green closed to stream can make the attractive landscape.


A WEAK POINT

On 6 hole, I have a question. The 6hole’ topography is very attractive, but, 6hole’s fairway and green are in wetland. And even, I wonder if the fairway is a little narrow.

And also, 5 hole’s green is in the wetland.

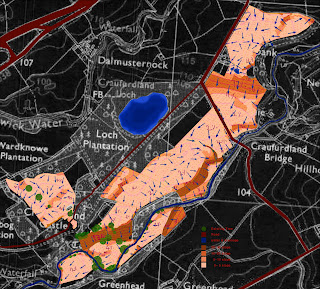

Routing Golf Course near Craufurland Castle

Most of this sites’ slope is about 0-10%.
Excepting slope (10-35%), there are much potential area on this site without earthmoving.
Drainage marked by many arrows is a pushover. And near the this site, a stream is flowing closing to the site.
Several existing valuable trees can be preserved or transplanted.

Seeing above picture, I can choose suitable site for backtee, green, and even clubhouse.
Stream crossing the site can provide golfers with interesting strategic and heroic holes.
Club House and parking area can be located in mid-site, where is connected with closed road, be the good view point.

According to above picture, I can make detail design on the site.
There are graphs, which explain the direction of backtee, and hole length.
